2026 Cam Superline 16+4 15.4K Split Deck Tilt Trailer - ATCM079



Get in Touch
Description

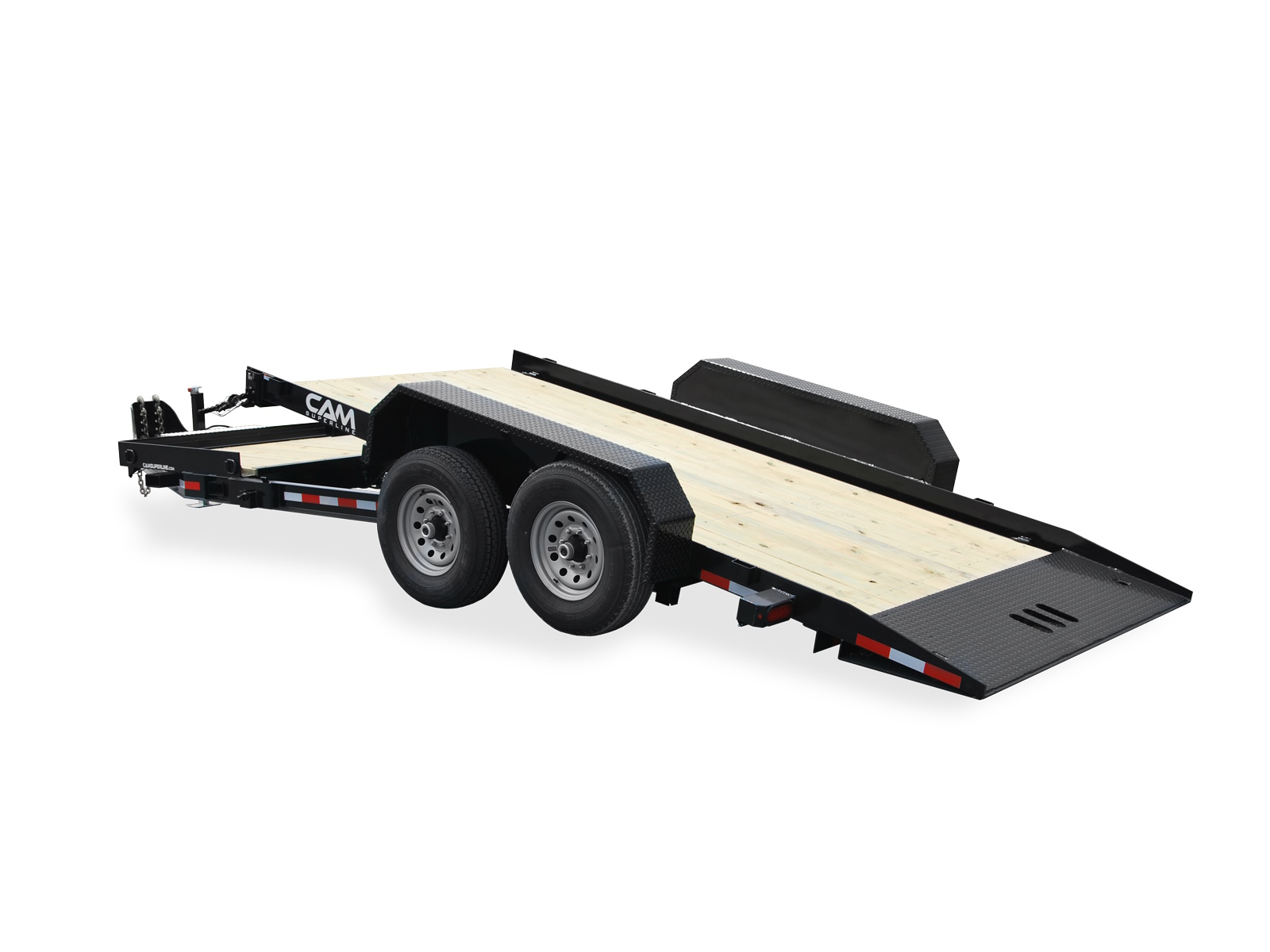

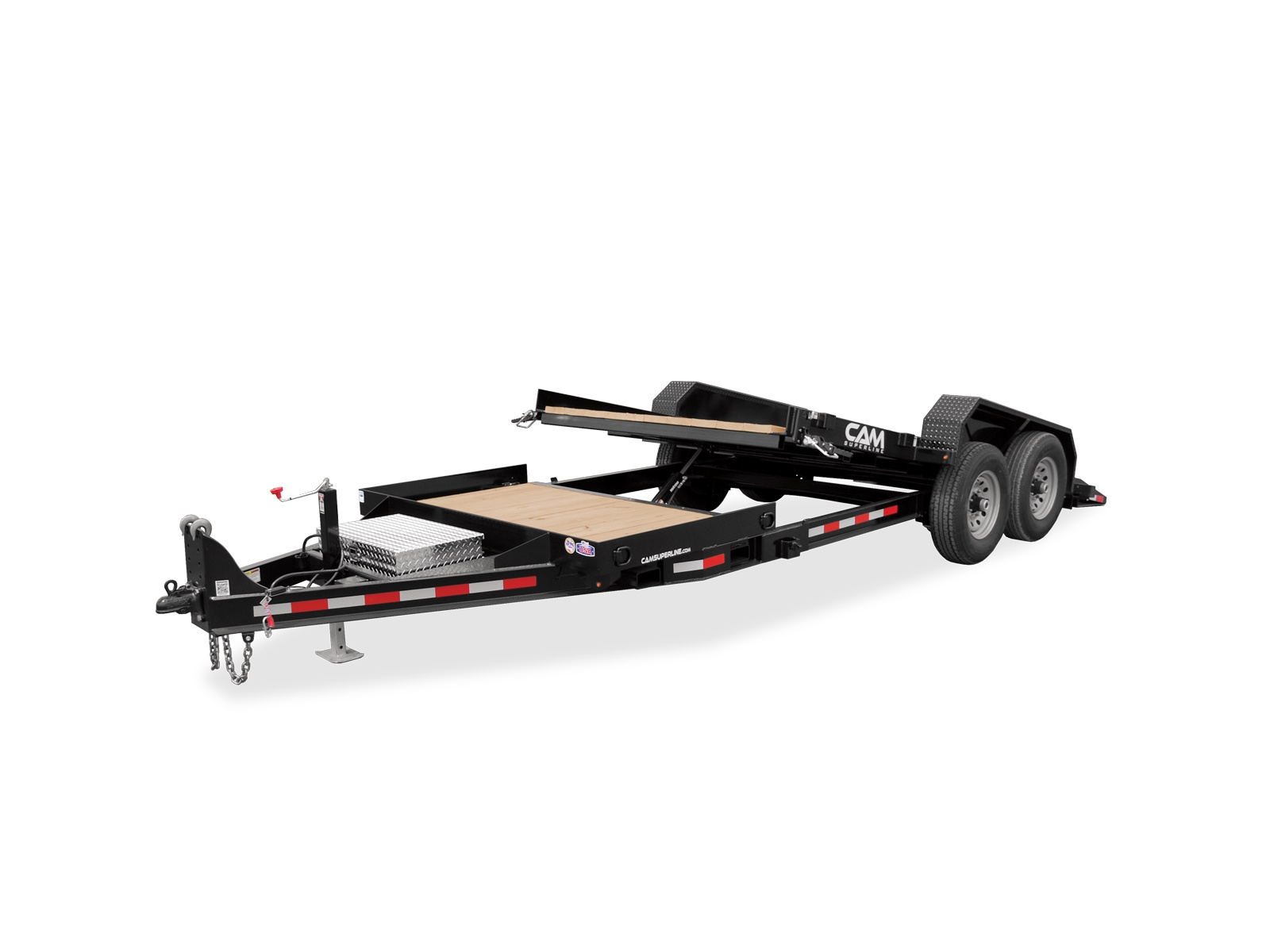

2026 CAM Superline 16+4 15.4K Split Deck Tilt Trailer

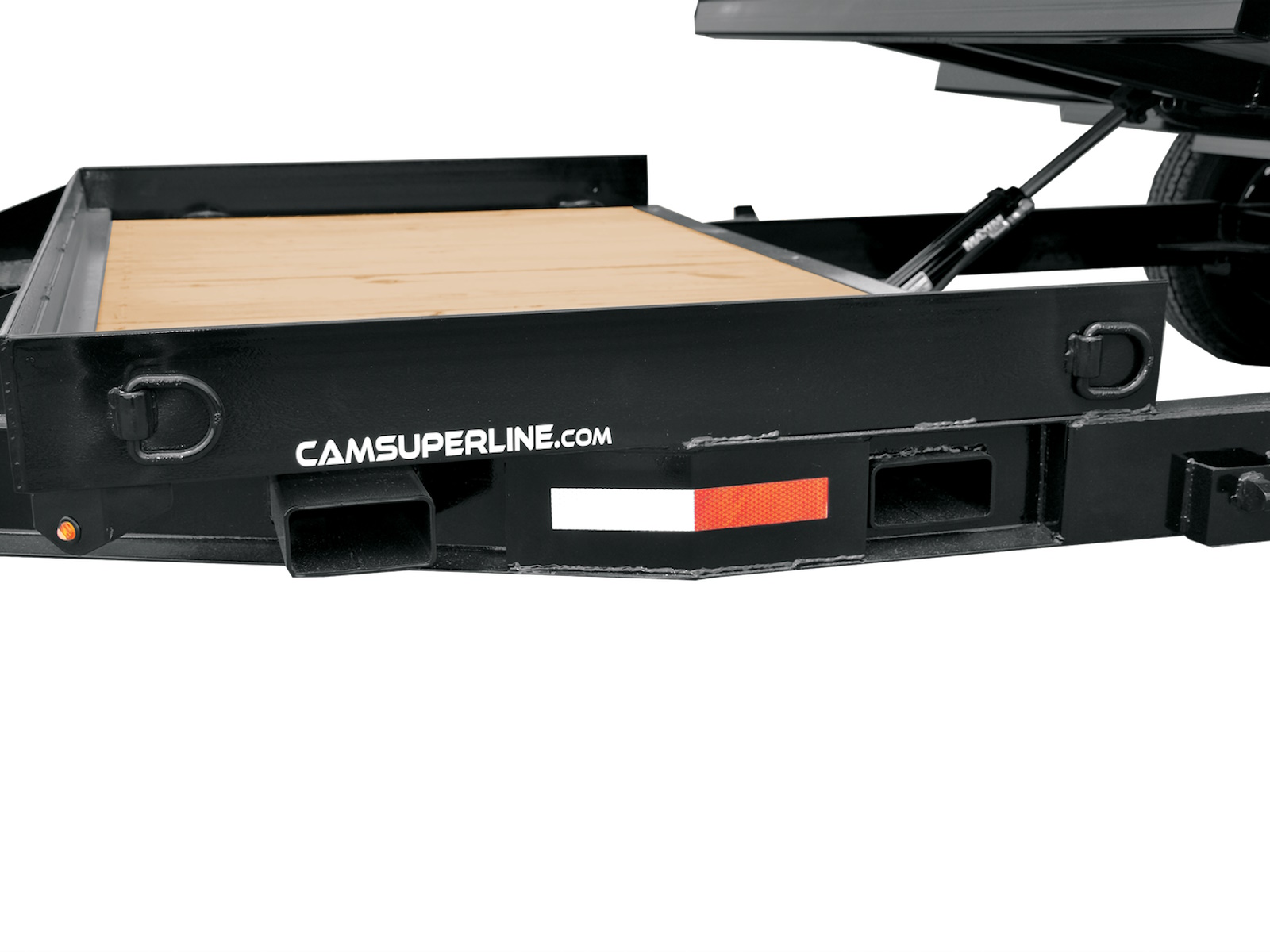

The Split Deck Tilt Trailer from CAM Superline® was specifically designed for hauling skid steers and compact tractors with the easy to use tilting deck for loading and unloading your machinery. With its standard pallet fork carrier and 4’ stationary deck provides convenient ways of hauling your attachments. Need an easier way to load your equipment? In combination with the optional Hydraulic Power Up and Power Down and Wireless Remote gives you the ability to load without the hassle of jumping in and out of your equipment to raise or lower your tilt deck.
Features may include:
- Safety Chains
- Zip Breakaway System with Solar Charger
- 4" Drop Axles
- Spare Tire Mount
- (8) D-Ring Tie-Downs - 5/8" (4 Stat., 4 Tilt)
- Stake Pockets (6)
- Pallet Fork Carrier (N/A with Gooseneck)
- Steel Toolbox
- Banjo Eye Tie-Downs (2)
- Sealed Wiring Harness
- Adjustable Hydraulic Cushion Cylinder
- Three Year Warranty
Dealer Notes
Adams Trailer Sales
12369 Eastern Avenue
Chelsea, Maine 04330
207-588-7283
2026 Cam Superline 7X20 TA 7-Ton (16+4) Split Tilt
Stock # ATCM079
Frame : 5" x 3" x 1/4" Steel Angle
Crossmembers : 3" x 2" x 3/16" Steel Angle
Tongue : 5" Steel Channel, Fully Wrapped
Coupler : 2-5/16" A-Frame
Safety Chains : DOT Compliant
Tongue Jack : 7K Drop Leg, Set-Back
Top Rail : 3" x 2" Steel Tube
Uprights : 2" x 2" Steel Tube
Ramp(s) : 5' Fold Flat HD Reinforced Spring Assist with Grab Handle (Ladder Style)
Fenders : Double Break Tread Plate
Axle : (2) 7000 lb. Spring Brake
Hubs : Easy Lube
Breakaway : Zip™ Cable and Switch, Battery
Tires : ST235/80R16LRE 10-PR
Wheels : 16", 8-Lug Steel
Exterior Finish : Industrial Grade Polymer Finish
Decking : 2" Pressure Treated Pine
Tie Downs : Rub Rails
Exterior Storage : Spare Tire Carrier
Connector Plug : Round 7-pin Blade
Exterior Lights : Full LED, DOT Compliant
Weights:
GVWR: 15400
Curb Weight: 3700
Payload: 11700
$10,335
Info
Industry
Trailer
Make
Cam Superline
Model
16+4 15.4K Split Deck Tilt Trailer
Trim
Base
Year
2026
Price
10335
Stock Number
ATCM079
Category
Tilt Trailer
Subcategory
Tilt Trailer
Condition
New
Location
Chelsea, Maine
Vin
5JWCF2525TP548728
Color
Black
Hitch Type
2 5/16 ball bumper pull
Axles
(2) 7000k
Length
20'
Width
7'
Suspension
Torsion
Wheels
16” 8 on 6.5”
Tires
235/80R16 LRE
Floor
5/4"X6" Pressure Treated Decking
Gvwr
15400
Payload Capacity
11700
Specifications
GVWR
15400 LBS
Dry Weight
Curb Weight: 3610 LBS
Max Load
Payload: 11790 LBS
Frame
6”x4”x3/8” Angle
Crossmembers
3” Channel
Coupler
Adjustable 2-5/16” Ball Coupler
Fenders
Diamond Plate
Suspension
Slipper Spring Suspension
Tires
16”, 8 on 6.5
Lights
LED Lights - Rubber Mounted
Finish
PPG Industrial Polyurethane Paint
Length
Overall: 304” | Between Fenders: 81"
Height
Deck: 17” | Coupler: 14" - 18.5"
Notes
GAWR: 7000 LB/Axle | Jack: 12k Bolt-On Drop Leg Jack | Decking: Pressure-Treated Pine Decking | Tilt Angle: 11°
Tongue
6" Channel @ 10.5 lb.
Axles
7000 lb. Greased
Electrical
7-Way SAE Plug
Wheels
16", 8 on 6.5
