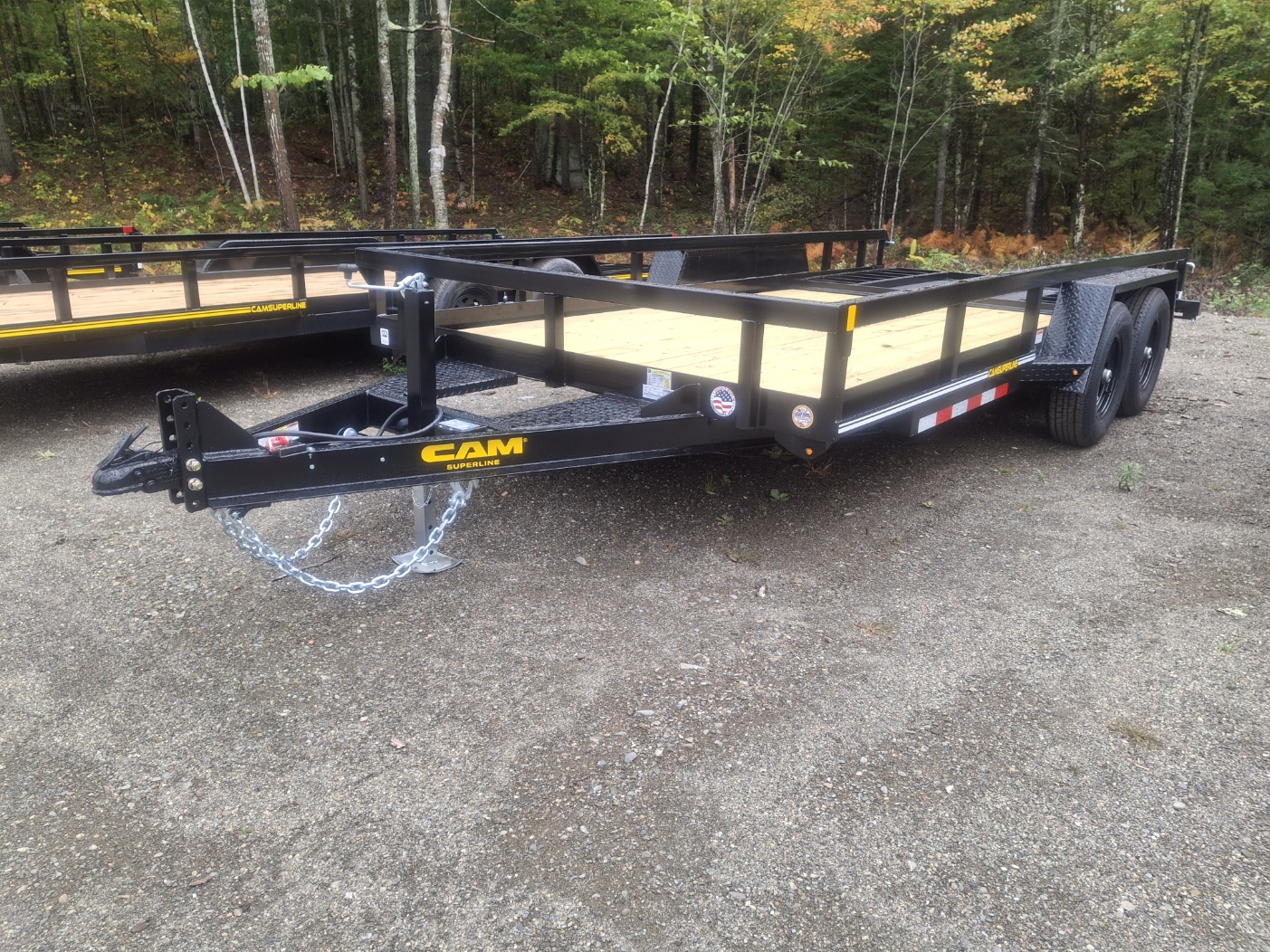

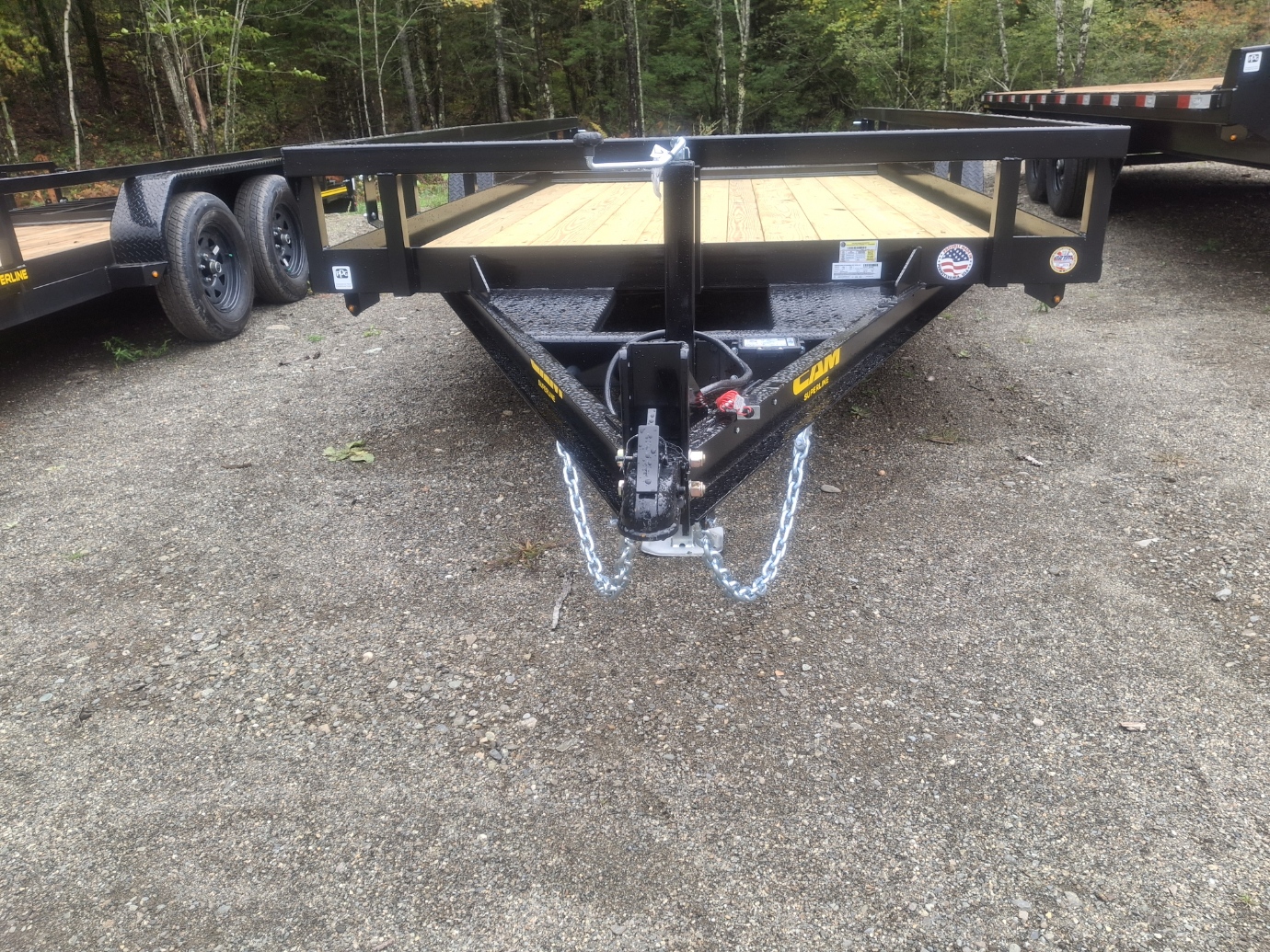

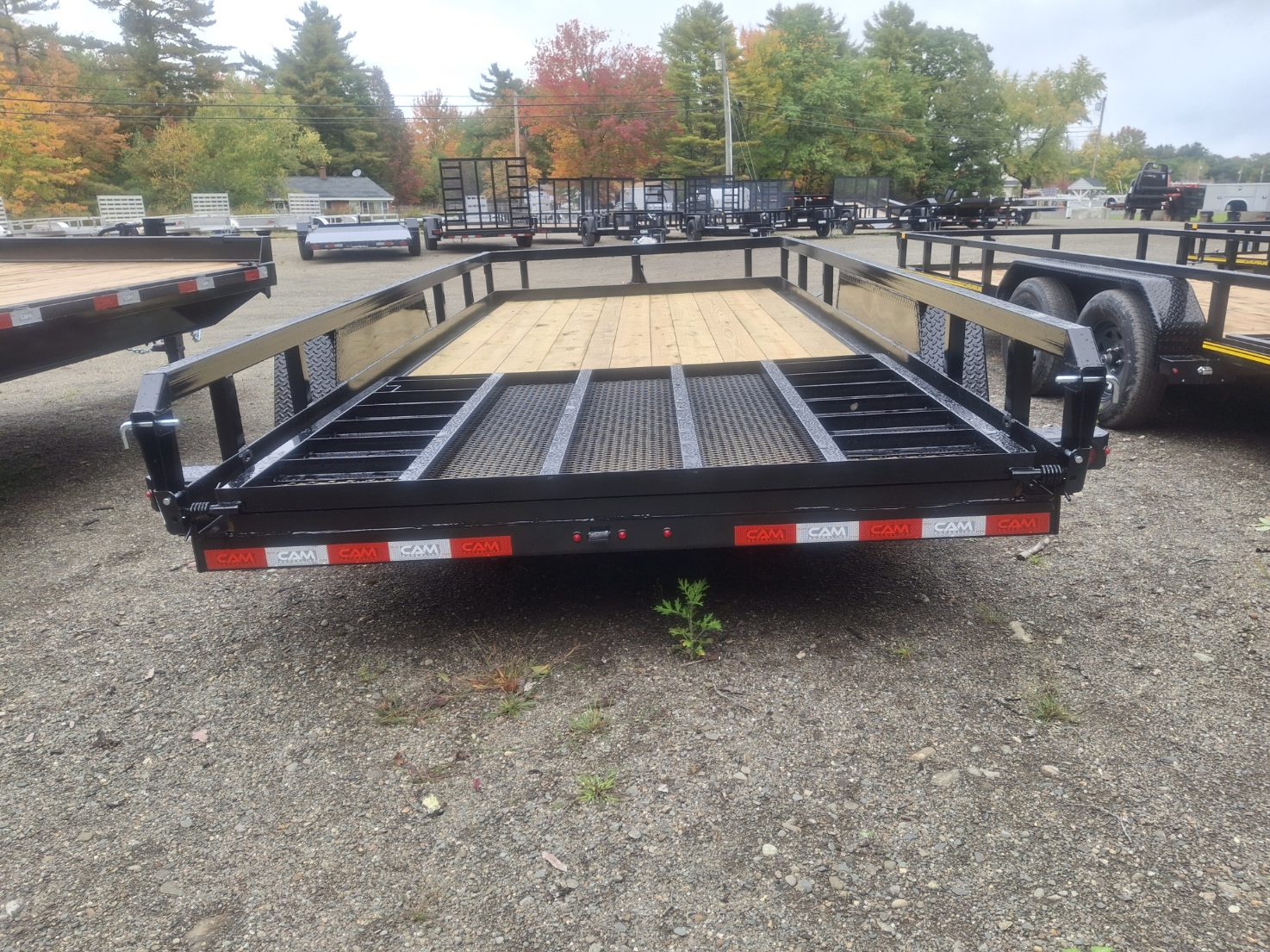

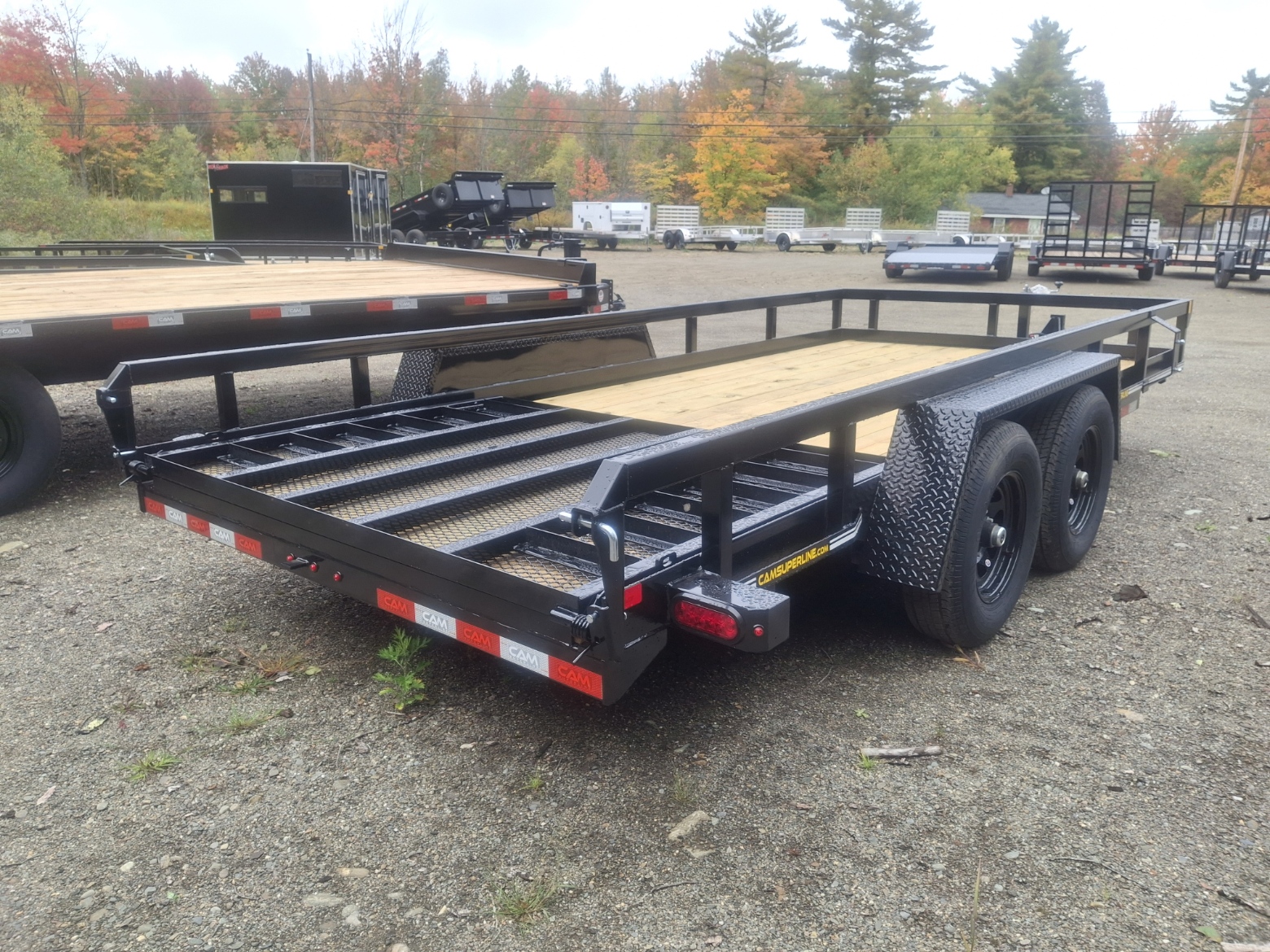

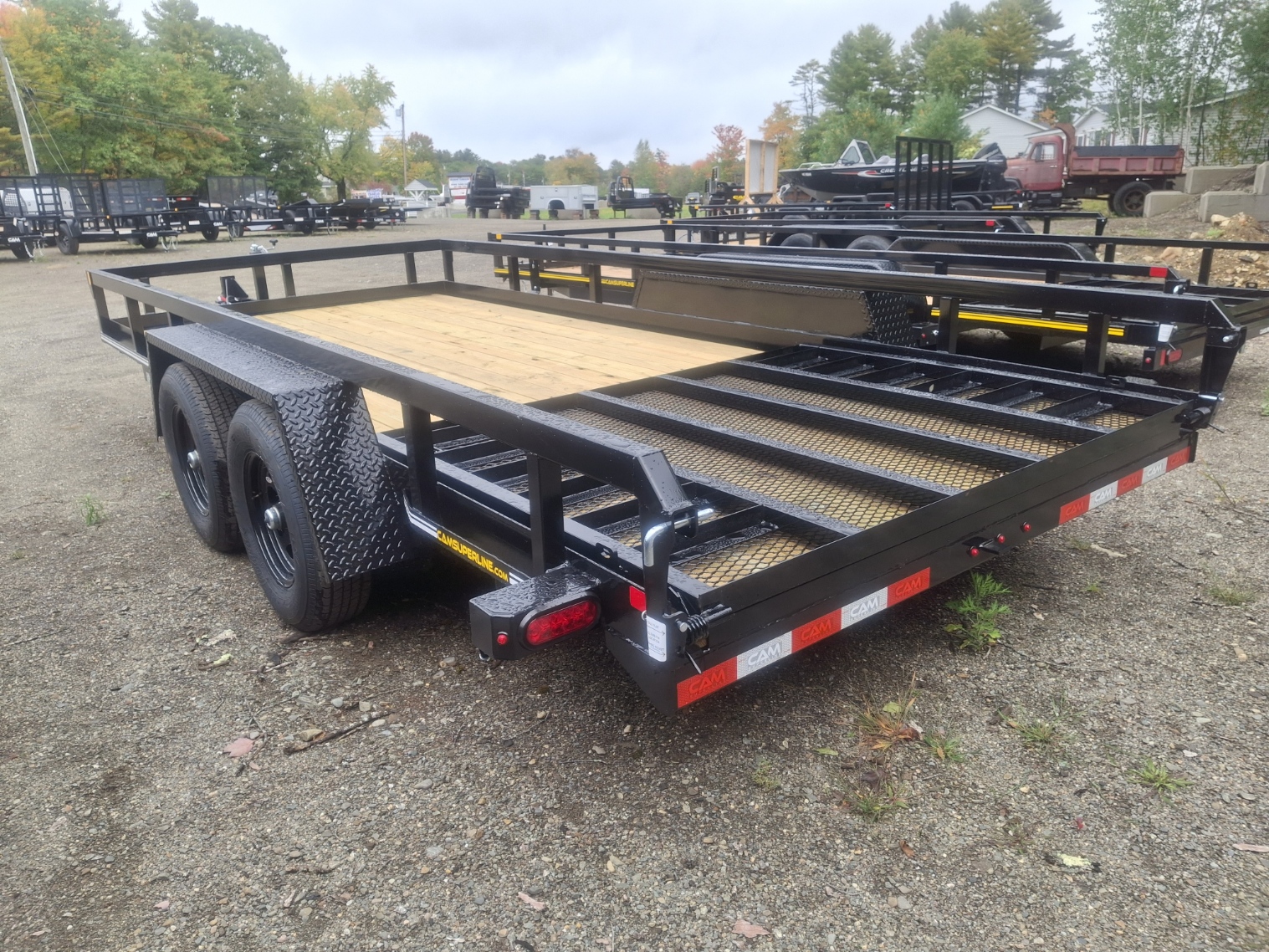

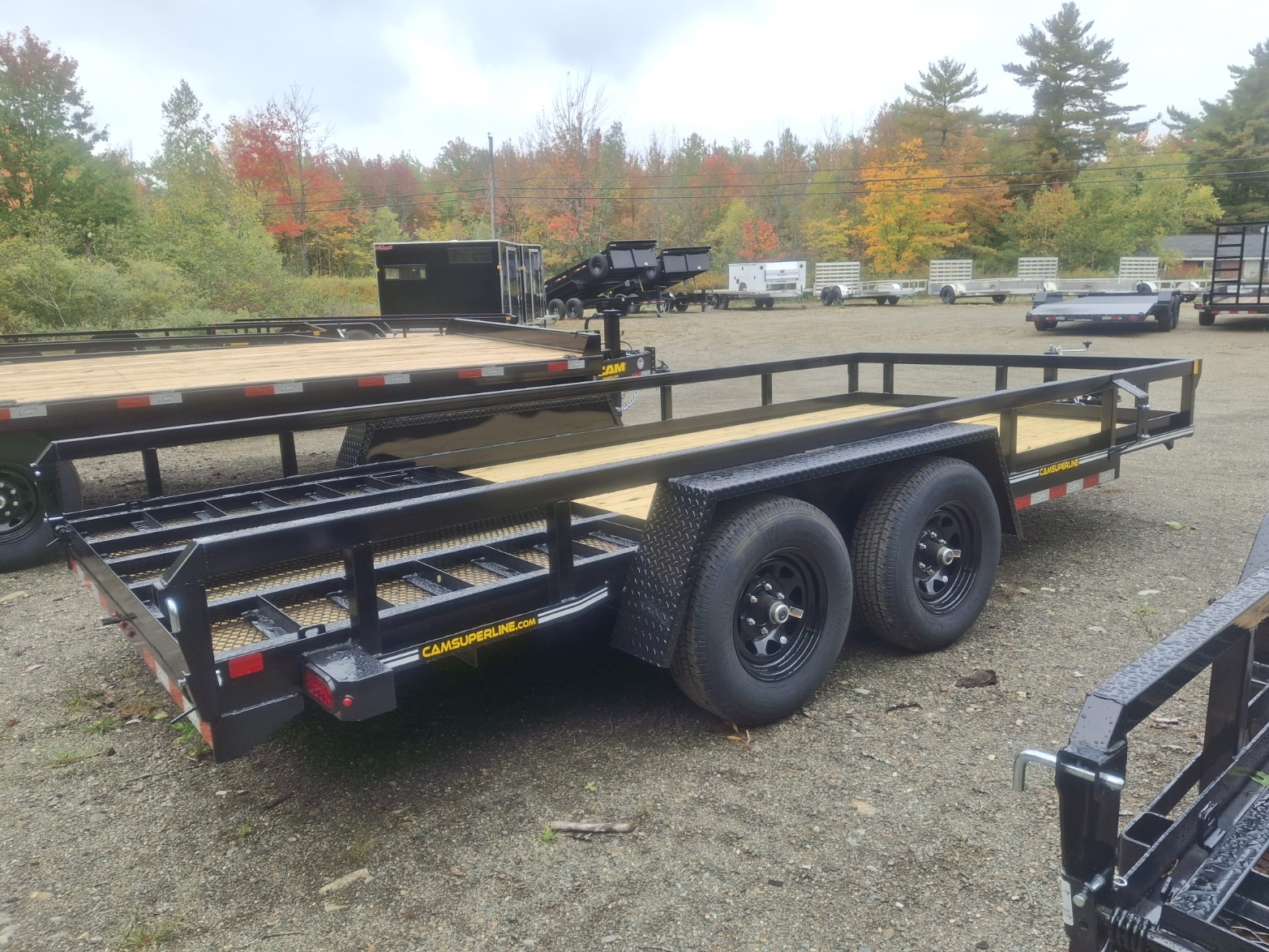

2026 Cam Superline 7' x 16' 10k Tandem Axle Utility Trailer - ATCM096
Get in Touch
AT A GLANCE
Cam Superline 7X16 TA 5-Ton UT Stock # ATCM096 Frame: 5 x 3 x 1/4 Angle Crossmembers: 3 x 2 x 3/16 Angle (24” On-Center) Top Rail: 3 x 2 Square Tube Tongue: 5” Channel (A-Frame) Uprights: 2
Industry
Trailer
Make
Cam Superline
Category
Utility Trailer
Year
2026
Model
7' x 16' 10k Tandem Axle Utility Trailer
Trim
Base
Stock
ATCM096
Subcategory
Utility Trailer
Description
2026 CAM Superline 7' x 16' 10k Tandem Axle Utility Trailer
The 10k Tandem Axle Utility Trailer from CAM Superline® was designed to haul small tractors, compact equipment, and side-by-sides. The 10k Utility Trailer features a 7k Drop-Leg Jack, Rub Rails, and a Reinforced 5’ Spring-Assist Laydown Gate that provides a shorter load angle making it easier to load and unload your equipment.
Features may include:
- Safety Chains
- Zip Breakaway System
- Spare Tire Mount
- Rub Rail
- Sealed Harness
- Enclosed Wiring
- Three Year Warranty
Dealer Notes
Cam Superline 7X16 TA 5-Ton UT
Stock # ATCM096
Frame: 5 x 3 x 1/4 Angle
Crossmembers: 3 x 2 x 3/16 Angle (24” On-Center)
Top Rail: 3 x 2 Square Tube
Tongue: 5” Channel (A-Frame)
Uprights: 2 x 2 square Tube
Coupler: 2 5/16” Ball
Jack: 7K Bolt-on Drop Leg Jack
Fenders: Diamond Plate
Axles: Cambered Brake (Both Axles)
Suspension: Equalized Leaf Spring
Tires: 225/75R15 LRD
Wheels: 15”, 6 on 5.5
Decking: 2 x 6 Pressure Treated Pine
Lights: All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish PPG Industrial Polyurethane Paint
Weight:
GVWR: 9900
Curb Weight: 2290
Payload: 7610
$6,490
Info
Condition
New
Location
Chelsea, Maine
VIN
5JWCF2129VP551317
Dry Weight
2290
Color
Black
Hitch Type
2 5/16 ball bumper pull
Length
16'
Width
7'
Wheels
15”, 6 on 5.5
Tires
225/75R15 LRD
Gvwr
9900
Payload Capacity
7610
Trailer Material
Steel
Specifications
GVWR
9900 LBS
Dry Weight
Curb Weight: 2290 LBS
Max Load
Payload: 7610 LBS
Frame
5 x 3 x 1/4” Angle
Crossmembers
3 x 2 x 3/16” Angle
Coupler
2-5/16” Ball
Fenders
Diamond Plate
Suspension
Equalized Leaf Spring
Tires
225/75R15 LRD
Wheels
15”, 6 on 5.5
Lights
All LED Lights
Finish
PPG Industrial Polyurethane Paint
Length
Overall: 239” | Bed: 192”
Width
Bed: 81.5”
Height
Deck: 20” | Coupler: 14.5" - 23.5"
Top Rail
3 x 2 Rectangular Tube
Tongue
5" Channel (A-Frame)
Uprights
2 x 2 Square Tube
Notes
GAWR: 5200 LB/Axle | Jack: 7k Bolt-On Drop Leg Jack | Decking: 2 x 6 Pressure Treated Pine
Axles
Cambered Brake (Both Axles)
Electrical
Plug: 7 Pole RV Molded Flat Blade
Gate/Door
5' Reinforced (Ladder Style) Landscape Gate, Spring Assisted
