FEATURED 2026 Cam Superline 82" x 14' (14k) Heavy Duty Scissor Hoist Dump - ATCM061
Get in Touch
Description

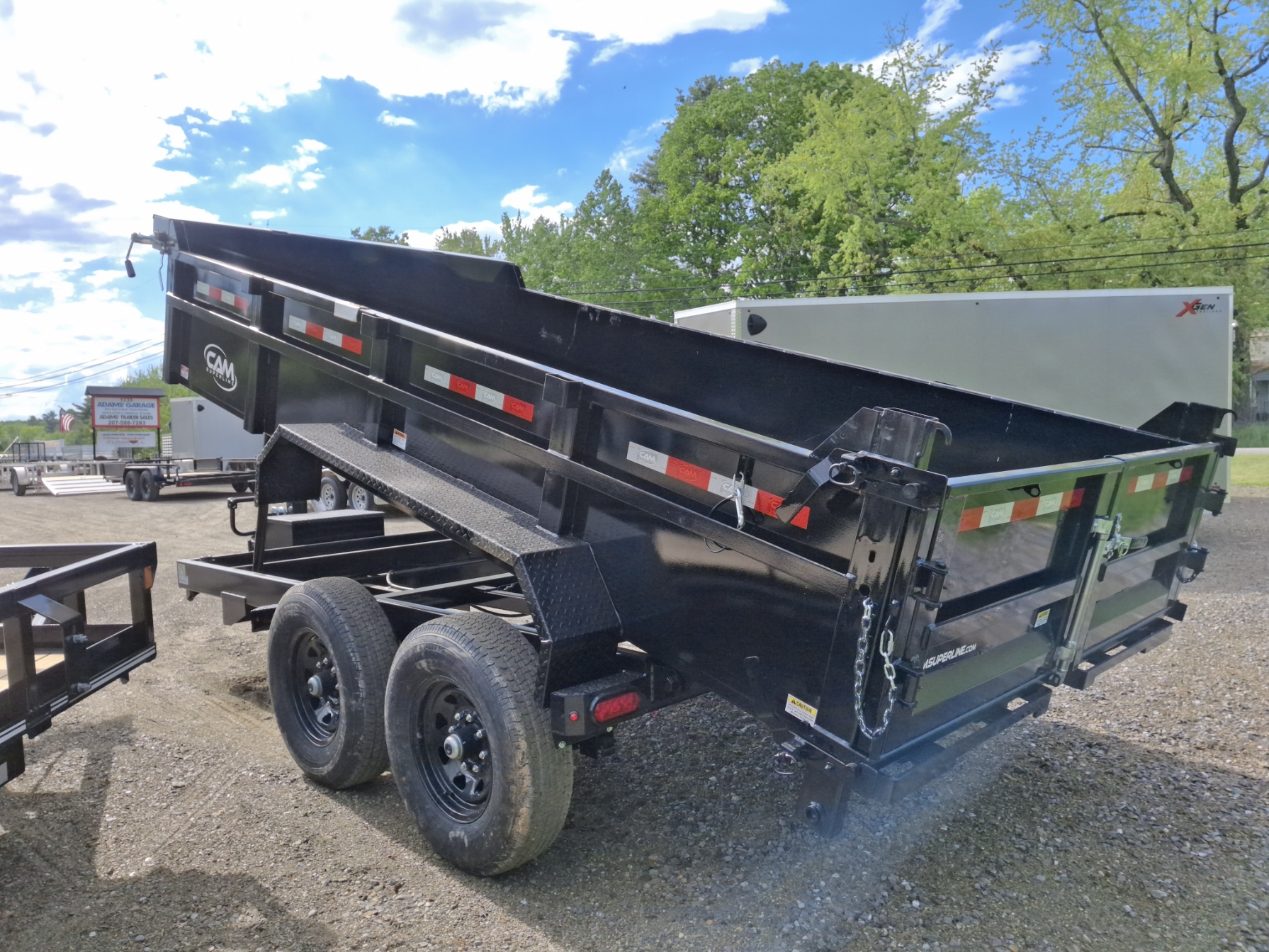

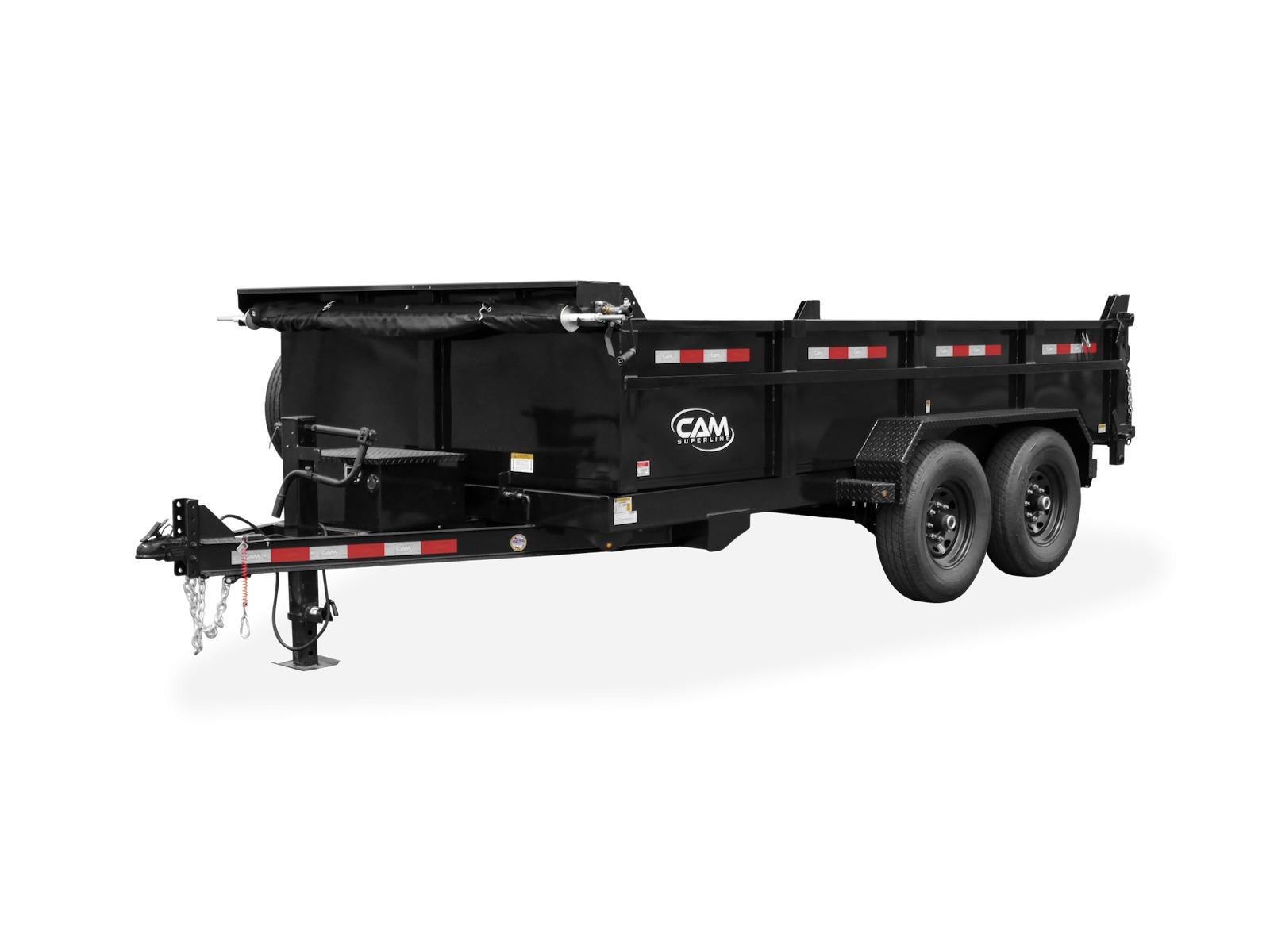

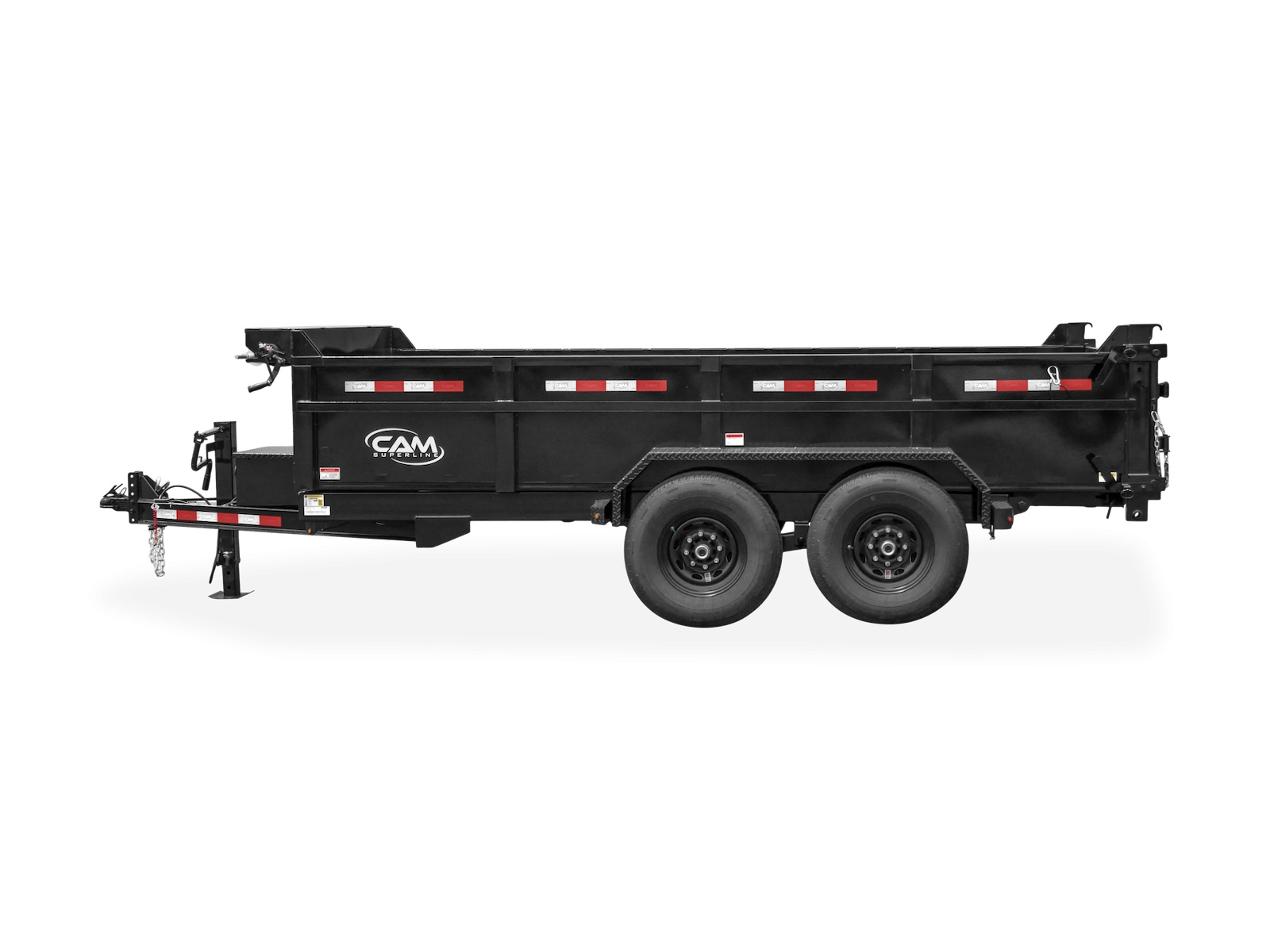

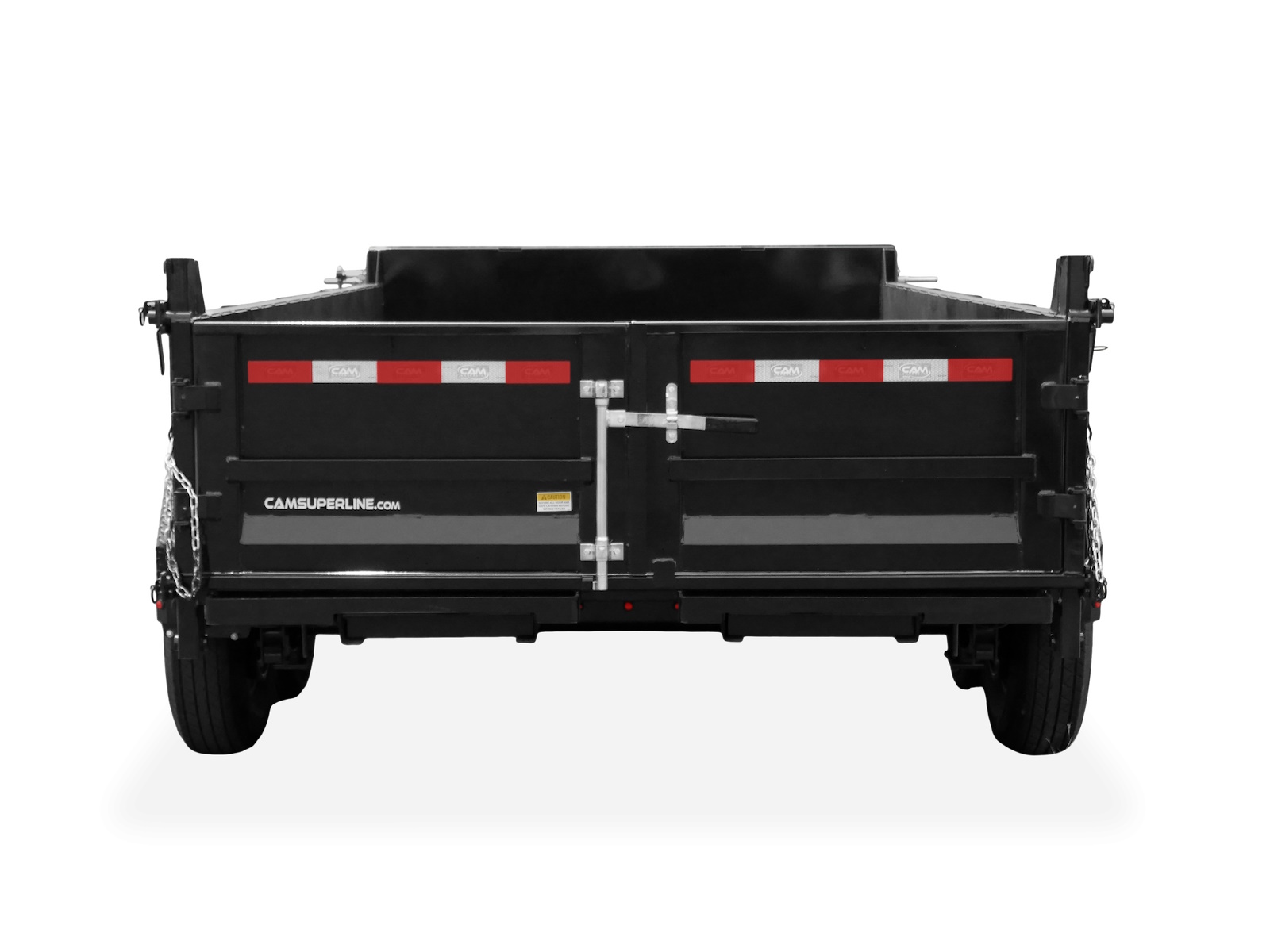

2026 CAM Superline 82" x 14' (14k) Heavy Duty Scissor Hoist Dump
The Heavy Duty Scissor Hoist is a cornerstone in our product lineup. Redesigned with an integrated tarp kit and 24″ sides with bord holders, the HDLP Scissor Hoist is more capable than ever. Long known for its dependability, the Scissor Hoist offers an impressive tilt angle. The Heavy Duty Dump is also available in 4′ highside allowing you to carry more debris in each load resulting in higher productivity.
Features may include:
- Safety Chains
- Zip Breakaway System
- Slide-Out Ladder Ramps (6')
- 10-Gauge Floor
- Spare Tire Mount
- D-Ring Tie-Downs - 1/2" (4)
- Stake Pockets and Rub Rail

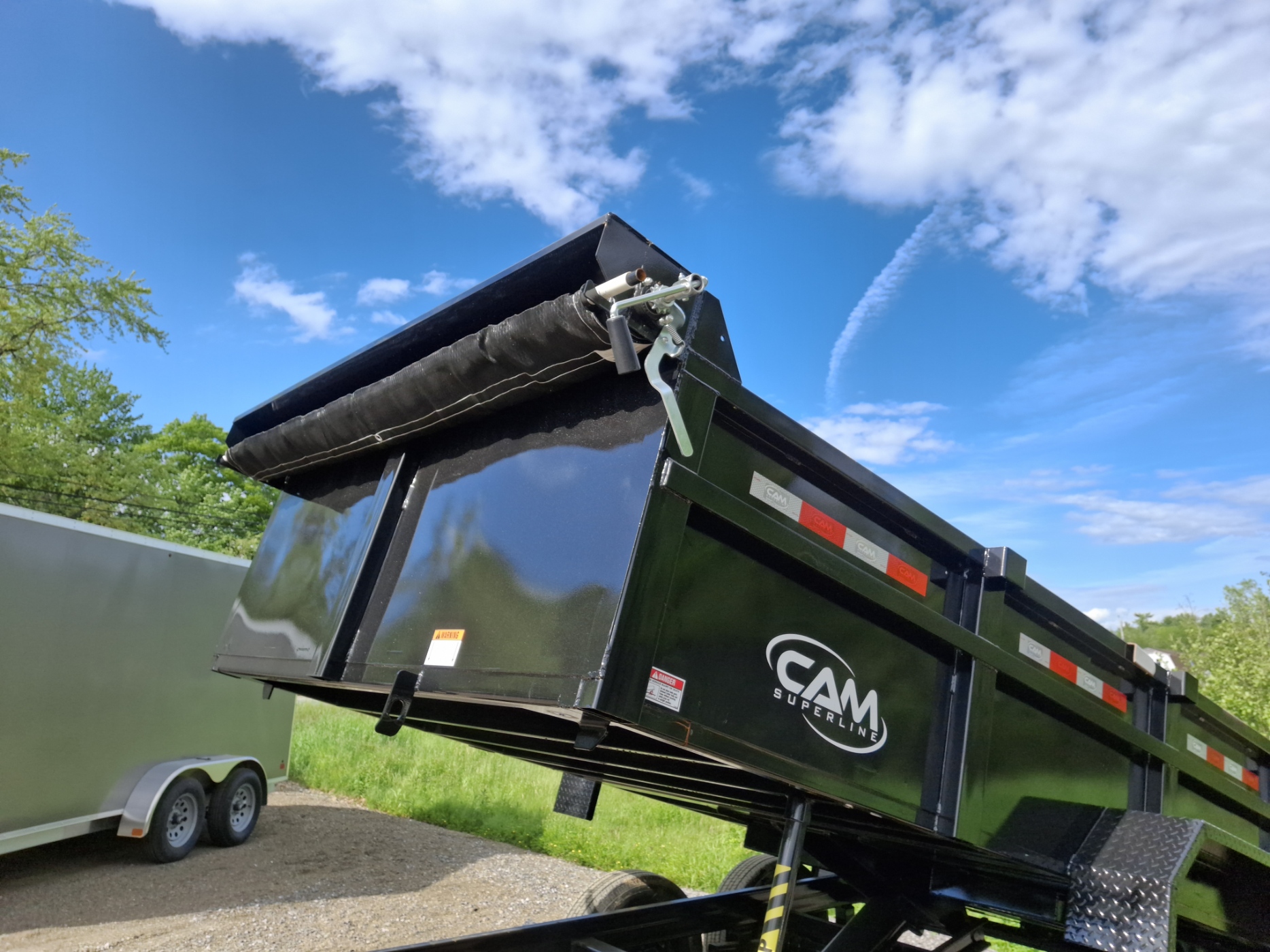

- Integrated Tarp Shroud
- Mesh Tarp Installed
- Storage Tray
- Sealed Wiring Harness

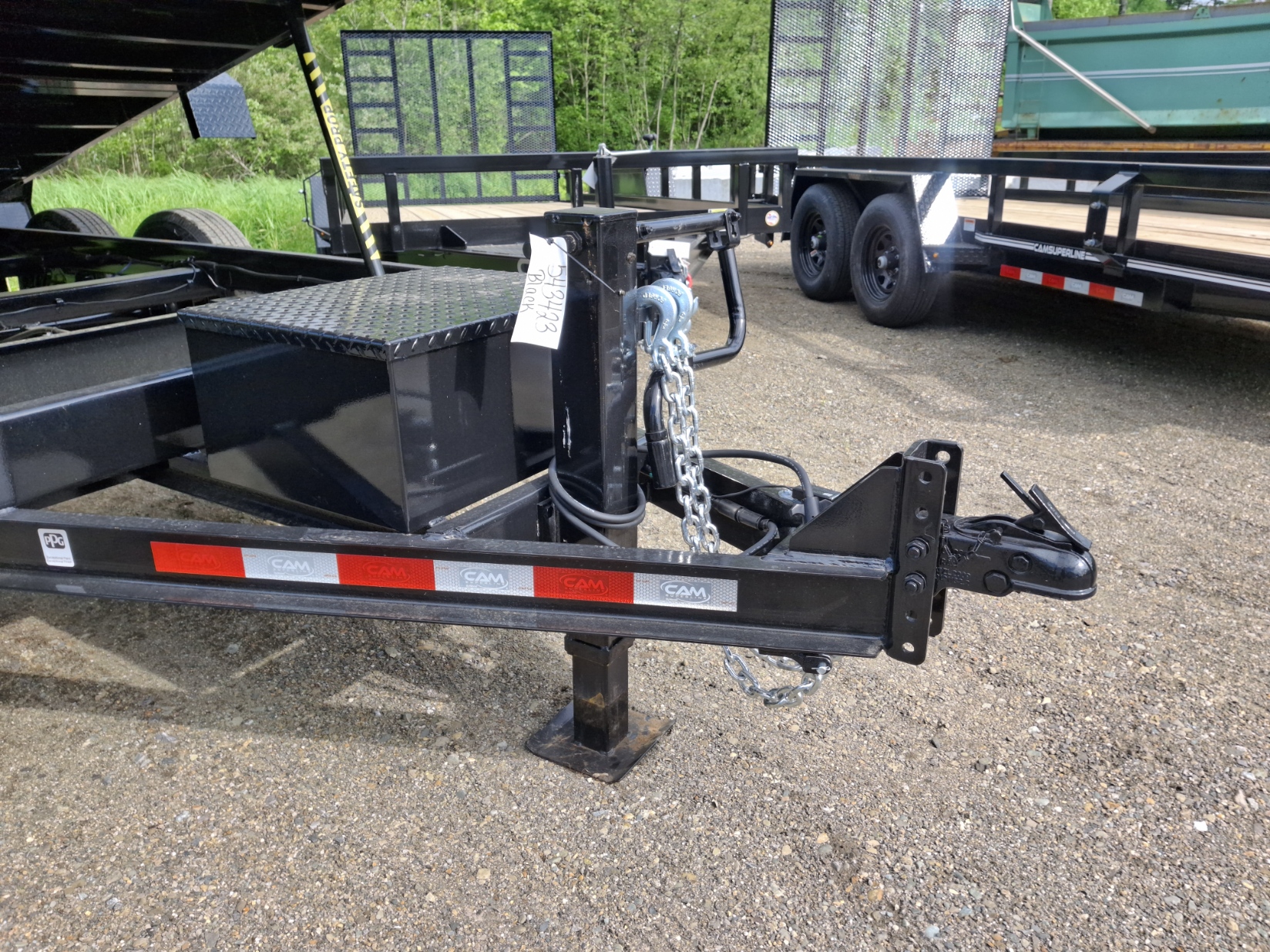

- Steel Lockable Pump Box
- Remote Control with 20' Cord
- 110V Battery Charger
- Three Year Warranty
Dealer Notes
2026 CAM Superline 82”X14 TA LP Scissor Dump
ATCM061
GVWR (lb.) 14000
GAWR (lb. / Axle) 7000
Curb Weight 4380
Payload 9620
Bed Capacity 7 cu yd

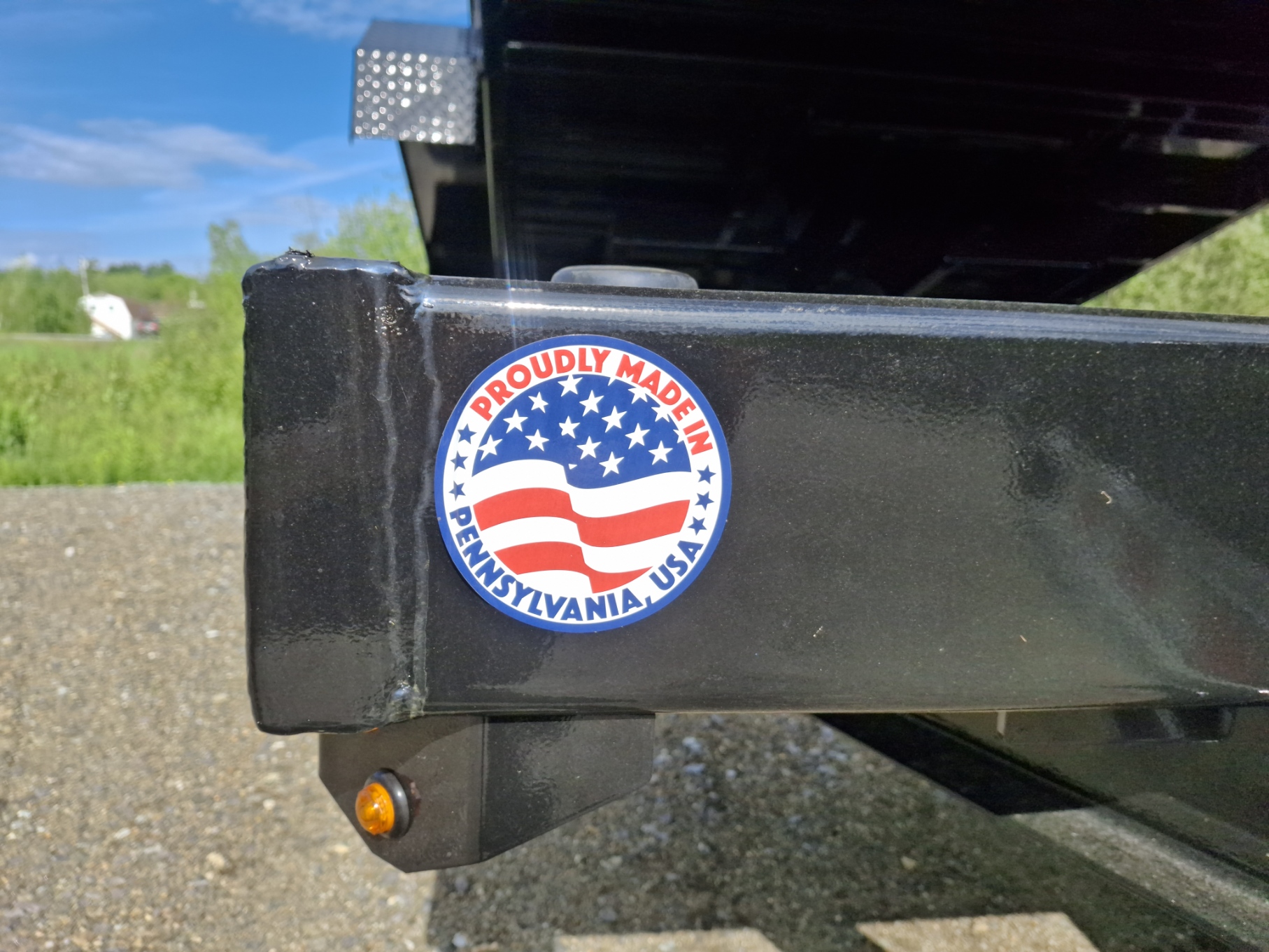

Frame 6”x2”x3/16” Rec. Tube
Crossmembers 3” Channel
Tongue 5” Channel
Coupler Adjustable 2-5/16” Ball Coupler
Jack 12K Bolt-On Drop Leg Jack
Fenders Diamond Plate
Axles 7,000 lb. Greased
Suspension Slipper Spring Suspension
Tires 235/80R16 LRE
Wheels 16”, 8 on 6.5”
10 Gauge, smooth steel
Lights LED Lights - Rubber Mounted
Electric Plug 7-Way SAE Plug
Finish PPG Industrial Polyurethane Paint
Overall Length 222”
Bed Width 82”
Deck Height 29”
Coupler Height 14” - 20.75”
Triple Acting Gate w/ chains
Finish: PPG Industrial Polyurethane Paint

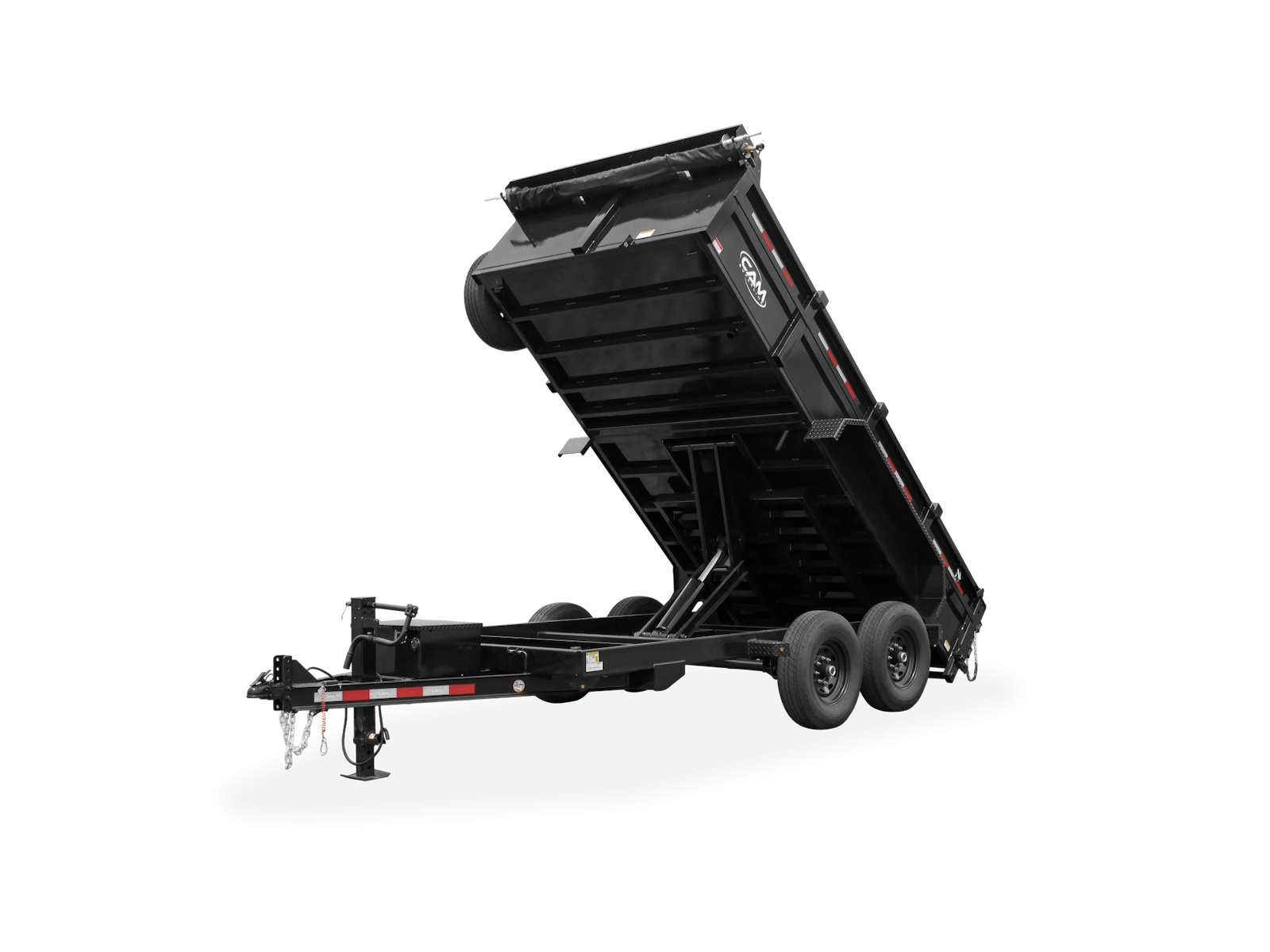

Hydraulic Hoist Scissor, Power Up, Gravity Down
Hydraulic Pump 12V Single Acting
Safety Chains Zip Breakaway System with Solar Charger Spare Tire Mount D-Ring Tie-Downs - 5/8” (4) Banjo Eye Tie-Downs (2) Sealed Wiring Harness Adjustable Hydraulic Cushion Cylinder Three Year Warranty
$11,400
Info
Industry
Trailer
Make
Cam Superline
Model
82" x 14' (14k) Heavy Duty Scissor Hoist Dump
Trim
Base
Year
2026
Price
11400
Stock Number
ATCM061
Category
Dump Trailer
Subcategory
Dump Trailer
Condition
New
Location
Chelsea, Maine
Vin
5JWCA1928TP545941
Dry Weight
4380
Color
Black
Hitch Type
2 5/16 ball bumper pull
Axles
(2) 7,000 lb. Greased
Length
10
Width
7
Wheels
16” 8 on 6.5”
Tires
235/80R16 LRE
Gvwr
14000
Payload Capacity
9620
Specifications
GVWR
14000 LBS
Dry Weight
Curb Weight: 4380 LBS
Max Load
Payload: 9620 LBS | Volume Capacity: 7.09 cu. yd
Frame
6" x 2" x 3/16" Rec. Tube
Crossmembers
3" Structural Steel Channel
Coupler
Adjustable 2-5/16" Ball Coupler
Fenders
Tread Plate
Suspension
Slipper Spring Suspension
Tires
235/80R16 LRE
Wheels
16", 8 on 6.5"
Lights
LED Lights - Rubber Mounted
Finish
PPG Industrial Polyurethane Paint
Length
Overall: 222" | Bed Inside: 168"
Width
Bed Inside: 82"
Height
Deck: 29" | Side Wall: 24" | Coupler: 19" - 27"
Notes

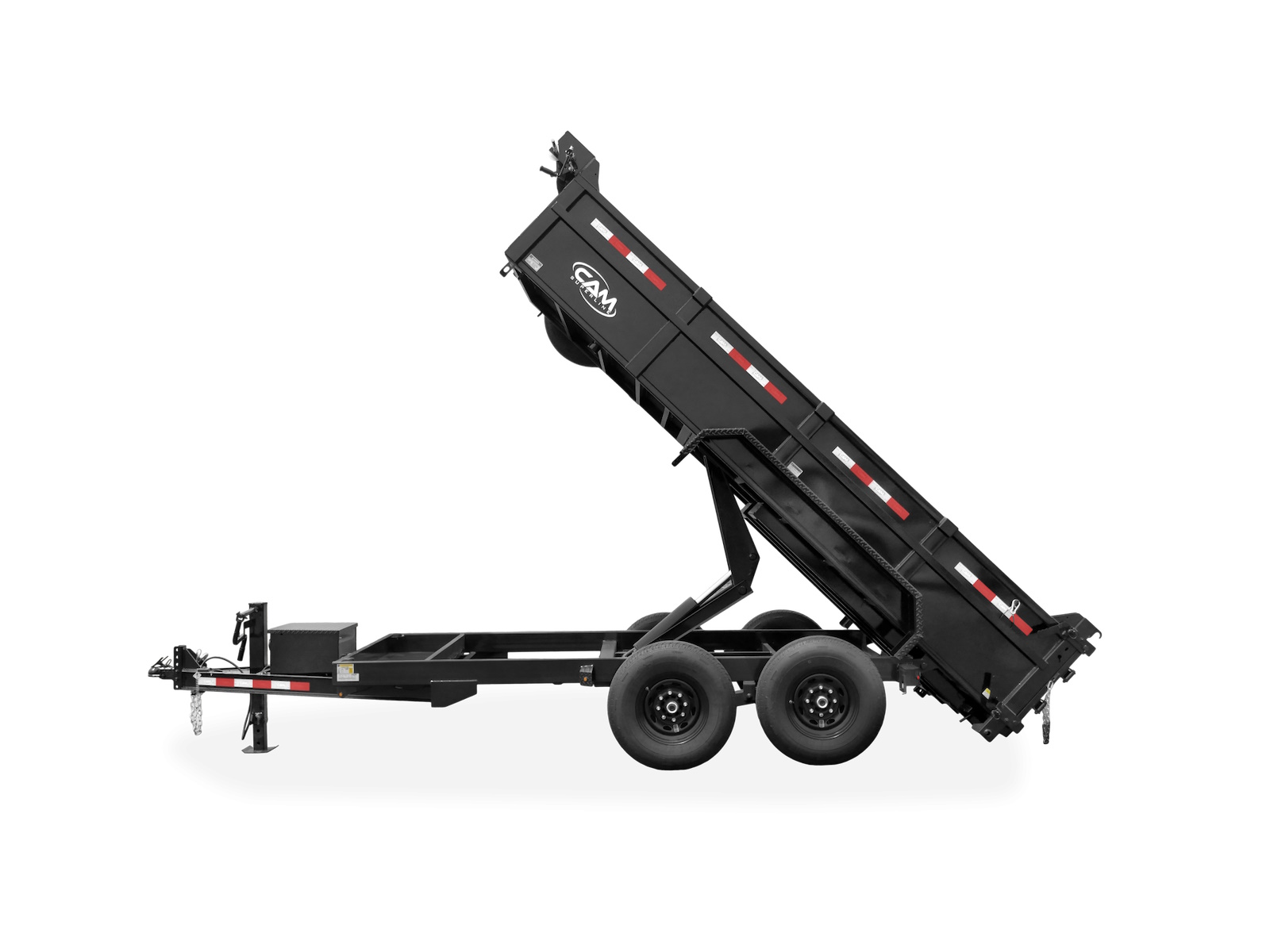

GAWR: 7000 LB/Axle | Jack: 12k Bolt-On Drop Leg Jack | Decking: 10-Gauge, Smooth Steel | Dump Angle: 43° | Hydraulic Hoist: Scissor, Power-Up, Gravity-Down
Tongue
5" Channel
Axles
12k Bolt-On Drop Leg Jack
Electrical
7-Way SAE Plug
Gate/Door
Triple-Acting Tailgate with Chains
Pump
Hydraulic: 12V Single Acting
Battery
12V Deep-Cycle, DP24
